ROS surface (rosbridge)

Terrain under an aircraft, a sea bed under a boat, the walls of an underwater cave: whatever a ROS sensor measures, drawn live in the 3D view as an averaged mesh of grey lines over a transparent body — not as a point cloud. The GCS connects to rosbridge on the vehicle’s companion computer, subscribes to one sensor topic, places every point with the MAVLink telemetry pose and averages them into 30 cm cells.

  sensor ── ROS driver ── rosbridge_server ──── WebSocket ────▶ GCS worker ──▶ 3D view
  (LiDAR, sonar, echo sounder)     (CBOR, throttled)             (sample, place, average)   (changed tiles only)
  ArduPilot ── MAVLink ──────────────────────────────────────────▶ pose (absolute or relative)

Two independent links meet in the GCS: the autopilot does not need to know about ROS, and ROS does not need to know about the autopilot. Nothing is installed on the vehicle besides rosbridge.


Quick start the five steps from a ROS sensor to a mesh on screen
1. On the vehicle installing and starting rosbridge, the network, supported messages
2. The ROS page every setting on SETUP → TOOLS → ROS, with its default
3. On the flight screen the ROS strip, its three buttons and its colours
4. Reading the status the status lines, every state and what to do about it
5. Worked examples aerial LiDAR, SLAM map, echo sounder, survey sonar, ROV in a cave, sector-scanning sonar
6. What happens to the points sampling, spikes, pose projection, placing, averaging, the mesh
7. Caves the 3D signed-distance volume
8. Absolute and relative with and without GPS
9. Testing without a vehicle the rosbridge emulator, the Lake Garda survey, measured accuracy
10. Limits what the surface is not

Quick start

  1. On the companion computer, start rosbridge (ROS 2: ros2 launch rosbridge_server rosbridge_websocket_launch.xml) and the sensor driver.
  2. In the GCS, connect the vehicle as usual (MAVLink), so it has a pose.
  3. Open SETUP → TOOLS → ROS, type the rosbridge address in ROSBRIDGE URL (ws://<companion IP>:9090) and tick SURFACE FROM ROS.
  4. Pick the sensor topic in TOPIC (the list fills in once connected) and the SENSOR profile (Aerial LiDAR or Sea bed); check the MOUNT in the preview.
  5. Go back to FLIGHT DATA: the ROS strip at the top shows ACCUMULATING and the surface grows under the vehicle as it moves.

The settings are remembered; the SURFACE FROM ROS tick is not — like the LiDAR, a ROS link is started on purpose, each session.

1. On the vehicle: rosbridge

Install and start

rosbridge is the standard ROS package that exposes topics over a WebSocket. The launch file also starts rosapi, which the GCS uses to list the topics.

  Install Start
ROS 2 (Humble, Jazzy, …) sudo apt install ros-$ROS_DISTRO-rosbridge-suite ros2 launch rosbridge_server rosbridge_websocket_launch.xml
ROS 1 (Noetic) sudo apt install ros-noetic-rosbridge-server roslaunch rosbridge_server rosbridge_websocket.launch

It listens on TCP port 9090 (port:=… changes it). Start it at boot together with the sensor driver (a systemd unit or your launch file), so it is there whenever the vehicle is powered.

Network

The GCS PC must reach the companion computer over IP: Wi-Fi, an Ethernet radio bridge (Microhard, Doodle Labs, Silvus, Ubiquiti), a tether, or a VPN over a cellular link. Open TCP 9090 in the companion’s firewall. The address you type is the companion’s IP as seen from the GCS: ws://192.168.1.20:9090. wss:// works for a rosbridge behind TLS.

A point cloud is heavy: rosbridge sends whole messages, and the GCS samples them only after they have crossed the link. On a narrow link lower MAX RATE, or downsample on the vehicle (pcl_ros VoxelGrid, the driver’s own decimation) — see Limits.

Supported messages

Message Typical sensors What is read
sensor_msgs/PointCloud2 3D LiDAR (livox_ros_driver2, Velodyne, Ouster, Hesai), multibeam or profiling sonar, a SLAM map the x, y, z fields (any numeric type), header.frame_id, header.stamp
sensor_msgs/LaserScan 2D scanner, push-broom LiDAR, a multibeam swath published as a scan, a sector-scanning sonar ranges, angle_min, angle_increment, range_min/max, time_increment (each beam at its own time)
sensor_msgs/Range single-beam echo sounder, altimeter, a downward rangefinder range, field_of_view, min/max_range

ROS 1 and ROS 2 type names (sensor_msgs/msg/PointCloud2) are both recognised. Points that are NaN, infinite or exactly (0, 0, 0) — the “no return” value of many drivers — are dropped.

Sensors with their own message types — the Blue Robotics Ping360 and Ping1D (bluerobotics_ping_msgs), a sonar SDK’s own messages — need a small node on the companion that republishes them as one of the three types above: a Ping1D distance as a Range (in metres, with the beam width as field_of_view), a multibeam ping as a LaserScan or a PointCloud2 in the sensor’s frame.

A mechanical sector-scanning sonar (Ping360, Imagenex 881, Tritech Micron) measures one beam per ping, stepping its head between pings: a 120° sector takes 4–6 s, and a boat moves metres in it. Its node should detect the bottom in each ping’s echo and publish the pings as a LaserScan every second or so, never across a turn of the head: angle_min the first ping’s head angle, angle_increment the step (negative while the head sweeps back), time_increment the time from one ping to the next and header.stamp the first ping’s time. The GCS then places every beam with the vehicle’s pose at its own time (§6); without time_increment the whole message gets one pose, and a wreck under a boat at 2 m/s comes out smeared along the track (§9).

2. SETUP → TOOLS → ROS: every setting

The page has two panels: ROS · ROSBRIDGE (the link and the topic) and MOUNT & MESH (where the sensor sits and how the surface is built). Every change applies at once, also while connected. A green dot beside ROS in the SETUP menu means rosbridge is connected.

ROS · ROSBRIDGE

Setting Default
SURFACE FROM ROS off Connects to rosbridge and starts building the surface; unticking disconnects, hides the strip and clears the surface. Not remembered between sessions.
ROSBRIDGE URL ws://127.0.0.1:9090 Must start with ws:// or wss://. Changing it while connected reconnects. If rosbridge is not there yet the GCS retries every 2 s.
TRANSPORT CBOR CBOR sends the binary point arrays as they are; JSON inflates them by a third (base64). Use JSON only for an old rosbridge without CBOR.
TOPIC — The topics rosapi lists, filtered to the three supported types, as name · type. REFRESH asks rosapi again (a driver started after the GCS connected). A saved topic nobody publishes right now stays selected, marked (not published now): rosbridge subscribes ahead of the publisher. Changing topic clears the surface.
SENSOR Aerial LiDAR A profile that fills in the usual values (below). Choose it first, then adjust.
SURFACES Floor only Floor only (terrain, sea bed): one height per cell. 3D: caves, shafts, overhangs: a signed-distance volume (§7).
POINTS FRAME Auto Auto decides from header.frame_id: map, odom, world, earth, local_origin (optionally with _enu, or _ned for NED) are world frames, everything else is the sensor’s own frame. Sensor and World force one or the other.
MAX RATE (Hz) 10 (profile) rosbridge sends at most this many messages a second, only the newest (throttle_rate, queue_length 1): a slow link never builds a backlog.
POINTS PER MESSAGE 5 000 (aerial) / 1 000 (sea bed) From each message at most this many points are sampled with a uniform stride from a random start; the rest are not used. 30 cm cells need about 10 000 points a second to fill a 100 m swath at 8 m/s. Up to 20 000.
CLEAR SURFACE   Drops the surface; it starts again from the next message. The same as CLEAR on the strip.
STATUS   The live status lines — see §4.

What each SENSOR profile fills in:

  Mount (roll, pitch, yaw) Range window Max rate Points per message Fill holes up to
Aerial LiDAR · terrain under the aircraft 180, 0, 0 (Livox inverted under the belly) 2.5 – 100 m 10 Hz 5 000 4 cells
Sea bed · echo sounder or sonar on a boat / ROV 0, −90, 0 (looking down) 0.5 – 100 m 10 Hz 1 000 4 cells
Sector sonar · mechanical scanning head, one beam per ping 0, −90, 0 (head down, sweeping across the track) 0.75 – 100 m 10 Hz 1 000 8 m

MOUNT & MESH

Setting Default
MOUNT ATTITUDE VS IMU (ROLL / PITCH / YAW °) from the profile ZYX Euler angles of the sensor frame relative to the vehicle body. The sensor frame is the ROS one (REP-103: x forward, y left, z up; a Range and a LaserScan measure along x); the body is the autopilot’s (FRD: x forward, y right, z down). Preset… fills in the common cases: Looking down (x down) 0, −90, 0 for an echo sounder, altimeter or push-broom scanner; Inverted under the belly 180, 0, 0 for a Livox Mid-360; Upright, x forward 0, 0, 0; Upright, nose-down 45° 0, −45, 0.
LEVER ARM IMU → SENSOR (X FWD / Y RIGHT / Z DOWN, m) 0, 0, 0 Where the sensor’s origin is from the autopilot’s IMU, in the body frame. On a boat, Z is the transducer’s draft below the IMU (positive down).
MOUNT PREVIEW   Draws the result as you type: the vehicle (a triangle, nose forward, fin on top), the sensor at its lever arm with its axes (X red, Y green, Z blue) and the zone it collects from, turned by the mount — a Range’s cone, a LaserScan’s fan, a cloud’s directions over the last 10 s (also on the bench, with no vehicle connected). It uses the same rotation the points are placed with: if the zone points the wrong way here, the surface will be wrong.
RANGE WINDOW (m) from the profile Returns closer than the minimum (the airframe, the hull, the landing gear) or farther than the maximum are dropped, in the sensor frame, before anything else.
SPIKE FILTER Spikes dropped Along an ordered scan (a sonar’s beams, a LaserScan’s sweep, a lidar’s rings) a return far off its neighbours is dropped: aeration under the hull, a fish, a particle. Every return turns it off. Never applied to a Range or to a cloud with no order. Details in §6.
TIME OF THE POINTS Arrival − lag When the points were measured, for the pose lookup. Arrival − lag: the time they reached the GCS, minus LAG. header.stamp + lag (clocks synced): the message’s own stamp, when the companion’s clock is synced with the GCS PC (chrony, NTP, GPS time); a stamp more than 2 s off this clock is not trusted, and the status line says so.
LAG (ms) 0 With Arrival: how much later than the telemetry the points reach the GCS (positive: points later). With Stamp: how late the telemetry reaches the GCS. Tune it as in the aerial example. −2000 to 2000.
VERTICAL REFERENCE Vehicle altitude (EKF) The height the sensor is placed at (less the lever arm). Vehicle altitude: the autopilot’s. Water surface at home · a boat: the altitude of home — where the boat was armed, on the water — whatever the EKF says later: a boat is always at the surface, while its EKF altitude drifts with the barometer, decimetres in a survey and metres over a day, and the bed would rise or sink with it from lane to lane. The waves’ heave is not followed (it averages out). Not for a ROV or an aircraft.
MIN CELL (m) 0.3 The finest cell: the mesh is this fine where the data allow. Changing it clears the surface.
MIN SAMPLES 1 Samples a cell needs to be drawn at its own size; with fewer, the mesh there is drawn coarser (60 cm, 1.2 m, 2.4 m, 4.8 m). Raise it for a cleaner, coarser mesh; lower it (down to 0.3) to see every cell touched once.
FILL HOLES UP TO 4 cells (profile) Empty cells between data are interpolated from the coarser cells around them, up to this size (at most 16 cells: 4.8 m at 30 cm, 8 m at 50 cm) — never past the edge of the data or across a height jump. 4 cells (1.2 m at 30 cm) for sensors that cover their swath; 8 m for those that sample in lines — a sector sonar’s sweeps 5–10 m apart, an echo sounder’s lanes. The coverage of a planned area is counted in blocks of this size: the area the mesh is drawn over.
MEMORY (samples) 20 A cell averages at most this many samples (messages), then follows a moving average: lower follows a changing scene faster, higher averages more noise away.
MAX TILES 2 048 Tiles of 30 × 30 cells kept; past this, the farthest from the vehicle are dropped. 2 048 tiles ≈ 16 ha at 30 cm.
TRIANGLE FILL OPACITY (%) 10 How opaque the triangles between the lines are; 0 = grey lines only. Up to 60.
DRAW THROUGH THE TERRAIN MESH on The surface is drawn over the elevation model even where it is under it: SRTM is ±5 m, and a lake’s flat surface would hide the sea bed. Untick to let the terrain hide it.

3. On the flight screen: the ROS strip

While SURFACE FROM ROS is ticked a strip appears at the top of the FLIGHT DATA screen:

 ● ROS  ACCUMULATING   12 480 cells · 30 cm · 4–31 m · 62 % of the area   [ DIST ] [ VIEW ON ] [ CLEAR ]
Part
LED green: accumulating; orange blinking: connecting or no rosbridge; orange: connected but not accumulating (no topic, no data, no pose…)
State the same state as the status line — see §4
Counter cells filled and the cell size (or, in 3D mode, triangles); with DIST the distance range of the colours; with ROUGH the departures read blue (the average) and full red; with a survey area planned, how much of it is covered
GRAY / DIST / ROUGH grey lines, or a solid surface coloured by distance or by roughness, cycling on each click (remembered)
VIEW ON / OFF hides or shows the surface; it keeps accumulating while hidden (remembered)
CLEAR drops the surface and starts again

The three colours:

  • GRAY: grey lines over a transparent body — the default, the least distracting.
  • DIST: a solid surface, shaded from the north-west, no lines: red → blue by distance from the vehicle, red at the nearest surface, blue at NEAR + max(20 m, 2 × NEAR); the strip shows the range in metres. Reads as a depth or height map around the vehicle.
  • ROUGH: a solid surface, shaded, no lines: how far the surface departs from its local plane (the RMS distance of the heights within 1.5 m from the plane that fits them best), against what is usual for this surface — blue as rough as it is on average or less, red from three standard deviations above the average (and at least 5 cm above it); the strip shows both, e.g. blue ≤ 2 cm · red ≥ 9 cm off-plane. A bed’s own texture (ripples, the sonar’s noise) stays blue; rocks, a wreck, a scarp, pockmarks stand out red — and so does a bad average (a wrong mount or lag shows as red streaks along the track). In 3D mode, where a wall has no height, it is how much the faces around each vertex disagree in direction, on the same scale.

The solid surfaces are drawn through the terrain too (DRAW THROUGH THE TERRAIN MESH) and hide their own far side — a wreck’s back wall is behind its front — while the vehicle stays in front of them.

The HUD also announces each change: ROS: connecting to …, ROS: averaging /topic, ROS: no rosbridge at …, and a warning when accumulation stops.

4. Reading the status and troubleshooting

The STATUS box on the ROS page has up to seven lines:

CONNECTED ws://192.168.1.20:9090
/livox/lidar · PointCloud2 · frame livox_frame → SENSOR · placed with the telemetry pose
10 msg/s · 200,000 pts/s in · 50,000 sampled · 48,900 averaged · 1,100 spikes dropped (2.2 %)
surface 214 / 2,048 tiles of 30×30 · cell 0.3 m · 96,120 cells (8,651 m²)
planned area 1: 0.12 km² · 7.2 % covered
drawn 9 / 9 blocks · 172,000 triangles · resolution 30 cm 81% · 60 cm 15% · 120 cm 4%
ACCUMULATING · pose absolute (GPS)
  1. the link and the URL;
  2. the topic, its type, its frame_id and how it is treated (sensor frame or world ENU / NED);
  3. messages and points a second: received, sampled, averaged, and the spikes dropped (or spike filter idle: the scan has no order);
  4. the surface: tiles used of MAX TILES, cell size, cells and area filled (3D mode: chunks and triangles);
  5. one line per area scan in the flight plan: its size and how much of it the surface covers, counted in blocks of FILL HOLES UP TO (green above 90 %);
  6. what is drawn: blocks, triangles and how much of the mesh is at each resolution;
  7. the state, absolute or relative pose, and the autopilot clock rate when it is not 1 (a SITL speed-up).

Warnings in orange appear in between: messages dropped for lack of a pose or a home, a header.stamp that is not synced with this clock. A message with no pose says why: points 1,200 ms after the newest attitude — the telemetry stopped or runs more than 0.5 s behind the points (the link; LAG); … before it, N ms after the oldest kept — the points are older than the telemetry the GCS keeps (LAG, or a stamp from another clock). The GCS keeps working minimized, behind another window or with the screen off.

State Means What to do
CONNECTING opening the WebSocket wait; it retries every 2 s
NO ROSBRIDGE the address does not answer check the URL and port, that rosbridge runs (ros2 node list shows /rosbridge_websocket), the network (ping the companion) and the firewall (TCP 9090)
rosapi: … is rosapi running (error line) connected but the topic list failed start rosbridge with the launch file, which starts rosapi too, not the bare node
NO TOPIC connected, no topic chosen (or of an unsupported type) choose one in TOPIC; if the list is empty, check the driver publishes (ros2 topic list -t) and press REFRESH
NO DATA no message for 3 s on the chosen topic the driver stopped or publishes on another name; ros2 topic hz /topic on the companion
NO VEHICLE no vehicle is connected (the demo flight is running) connect the vehicle over MAVLink: points are placed with its pose
NO POSITION the vehicle has no position yet wait for a GPS fix, or switch to the relative navigation mode for a vehicle without GPS (§8)
NO HOME (world frame) world-frame points (map, odom) but no home known wait for the home position (HOME_POSITION after arming / the first fix), or use a sensor-frame topic
NO HOME (water surface) VERTICAL REFERENCE is the water surface, and no home is known yet wait for the home position, or choose Vehicle altitude
EMPTY MESSAGES messages arrive with no points the driver publishes empty clouds (sensor not spinning, filtered out)
NO VALID POINTS every point was outside the range window, NaN or (0, 0, 0) widen the RANGE WINDOW; check the cloud’s units are metres
FRAME CHANGED · CLEAR the navigation mode changed under the surface press CLEAR (it clears by itself on a new connection or a mode switch)
ACCUMULATING everything works —

When the surface looks wrong rather than absent:

Symptom Likely cause
The surface is tilted, upside down, or appears above the vehicle wrong MOUNT: compare the zone in MOUNT PREVIEW with where the sensor really looks
Two sheets, doubled walls, steps along every slope when the vehicle turns wrong LAG (or a wrong yaw in the mount); low telemetry rates — raise SR_EXTRA1 and SR_POSITION to 10 Hz or more in MAVLink stream rates
The surface is offset by a constant distance wrong LEVER ARM, or (world frame) a map frame not anchored at the EKF origin
A boat’s bed steps up or down from one lane to the next, or reads too deep or too shallow overall the EKF altitude drifting with the barometer: VERTICAL REFERENCE Water surface at home
A sector sonar draws zig-zag lines with holes between them FILL HOLES UP TO 8 m (the Sector sonar profile), or drive slower
Shallow bumps under the track of a boat aeration: leave the SPIKE FILTER on, raise the minimum range
Very sparse, coarse mesh too few points: raise POINTS PER MESSAGE or MAX RATE, or lower MIN SAMPLES
The GCS slows down lower POINTS PER MESSAGE, MAX TILES, or use 30 FPS (SYS CONFIG)

5. Worked examples

A. Aerial LiDAR: terrain under a drone

A Livox Mid-360 inverted under the belly, livox_ros_driver2 publishing /livox/lidar (PointCloud2, frame livox_frame).

  1. SENSOR Aerial LiDAR (mount 180, 0, 0, range 2.5–100 m, 10 Hz, 5 000 points), SURFACES Floor only, POINTS FRAME Auto (the status shows livox_frame → SENSOR).
  2. LEVER ARM: measure the sensor’s optical centre from the autopilot, e.g. 0.05 m forward, 0, 0.12 m down.
  3. RANGE WINDOW: raise the minimum until the landing gear and the propeller guards no longer show as a blob under the vehicle.
  4. In SYS CONFIG → MAVLINK STREAM RATES set POSITION and EXTRA1 to 10 Hz and write them.
  5. Fly: hover 10–20 m over a slope or next to a building and yaw slowly. If the slope doubles or steps as the vehicle turns, change LAG in steps of 20–50 ms until it stays one sheet — 0–50 ms on a direct IP link, 100–300 ms through a slower radio for the telemetry.

The LiDAR chapter covers the same sensor read directly (no ROS) as a point cloud; this page averages it into a surface instead.

B. A SLAM map in a world frame

FAST-LIO, Point-LIO or a MAVROS pipeline publish an already georeferenced cloud (/cloud_registered) in a world frame. If its frame_id is map, odom or world, Auto treats it as a world frame: points are placed from home (absolute mode) or from the local zero (relative mode), with no mount or lag. A frame with another name (FAST-LIO’s camera_init) needs POINTS FRAME World.

This only lines up when the world frame is ENU (x east, y north, z up) with its origin at the EKF origin, as MAVROS publishes it. A SLAM that started elsewhere or with another heading does not — subscribe to its sensor-frame topic instead and let the GCS place it.

C. Single-beam echo sounder on a boat

A Ping1D (or any echo sounder) republished as sensor_msgs/Range on /ping1d/range.

  1. SENSOR Sea bed (mount 0, −90, 0 — x looking down; range 0.5–100 m), SURFACES Floor only.
  2. LEVER ARM Z = the transducer’s depth below the autopilot (e.g. 0.3 m), X/Y its position.
  3. A single beam fills one line of cells along the track: drive lanes close together (a few metres apart) and raise MIN CELL to 1–2 m, so neighbouring lanes join into a surface.
  4. The status shows the beam as Range · 25° cone along X in the preview (from field_of_view).

D. Multibeam or imaging sonar on a survey boat

  1. Plan the survey in FLIGHT PLAN as an Area scan with Lane spacing: From mapping sensor — aperture, range, design depth, side overlap (mission planning).
  2. ROS page: the sonar topic (PointCloud2 or LaserScan), SENSOR Sea bed, mount 0, −90, 0 if the fan is published with x along the beam axis looking down; check the fan in MOUNT PREVIEW lies across the hull.
  3. Leave the SPIKE FILTER on: under a hull in a chop the aeration returns at 0.5–4.5 m outnumber the bed’s in the cells under the track, and without the filter the bed there comes out metres too shallow.
  4. Use header.stamp if the companion runs chrony against the GCS or GPS time — sonar pings are stamped at transmission, and a stamp beats arrival time on a variable link.
  5. During the survey the strip shows … % of the area, and the status one line per planned area: the lanes still to fill are where the coverage stays below 100 %. ROUGH colour shows rocks, wrecks and scarps on the bed.

E. ROV in a cave or a shaft

  1. SURFACES 3D: caves, shafts, overhangs, a profiling sonar (e.g. a 360° fan across the vehicle) in the sensor frame.
  2. Without GPS under water, switch SYS CONFIG → NAVIGATION to Relative: the points are placed with the vehicle’s LOCAL_POSITION_NED (a DVL or USBL fused by the EKF) — see navigation without GPS.
  3. Move or sweep: a surface needs the sensor to move; two fans from one place have no area.

F. Sector-scanning sonar on a survey boat

A Ping360-class head on a pole under the boat, mounted with its rotation axis along the keel so it sweeps across the track, republished as LaserScans with time_increment (§1).

  1. ROS page: the sonar’s topic, SENSOR Sector sonar (mount 0, −90, 0: the beam’s x looking down, the sweep across the hull — check the fan in MOUNT PREVIEW), LEVER ARM Z the head’s depth below the autopilot. The status shows beams measured over 1.0 s a message (time_increment): each placed with the pose of its own time; if it does not, the node is not filling time_increment.
  2. VERTICAL REFERENCE Water surface at home: the bed’s depths then come from the water, not from the EKF altitude’s barometric drift. RANGE WINDOW: raise the minimum above the aeration under the boat (3–5 m) and below the shallowest bed — the spike filter drops single bubbles, not a run of them in a chop.
  3. MIN CELL 0.5 m: one beam per ping fills one cell, and 30 cm cells stay sparse. The profile sets FILL HOLES UP TO 8 m, so the sweeps join into one surface; at the default 4 cells the mesh shows the sweeps as separate zig-zag lines, and the coverage counts only the cells they touch.
  4. Plan the survey as an Area scan, From mapping sensor, with the sector as the swath angle and the range set on the sonar; drive slowly — a sweep every 4–6 s means a profile every 5–7 m at 1–1.5 m/s, and objects smaller than that can fall between two sweeps.
  5. The bottom of a sector sonar is where the echo crosses a threshold, on the beam’s axis: a hard object comes out wider by part of the beam’s footprint, and the bed at the edges of the sector reads a little shallow. Overlap the lanes so every object is seen from near the middle of a sector by one of them.

6. What happens to the points

  1. Sampling. The worker thread decodes each message (CBOR byte strings and typed arrays, or JSON base64) and keeps at most POINTS PER MESSAGE of them. Nothing of this reaches the render thread.
  2. Spikes. Points in the order the sensor sent them — a sonar’s beams across its swath, a LaserScan’s sweep, a lidar’s rings — form a profile: a real surface is continuous from one beam to the next but at a few edges, while aeration under the hull, a fish or a particle is a beam or a few far off their neighbours. A point more than max(0.5 m, 8 % of the range) from the median of the 9 points around it is dropped; the median keeps edges (a wall, a wreck’s side). A cloud without order (or sampled too sparsely to keep it) is left alone. The status line shows how many are dropped. Under a survey boat in a chop, aeration returns at 0.5–4.5 m land in the cells under the track, where they outnumber the bed’s: without the filter the bed there came out 10 m too shallow.
  3. Pose at the points’ time. The pose is the one the 3D view draws the vehicle at — absolute (GPS) or relative (SYS CONFIG → NAVIGATION). A LaserScan with a time_increment is placed beam by beam, each at its own time (runs of beams within 5 ms share one pose): the first beam at header.stamp, or — with arrival time — the message’s span before it arrived, since a message arrives after its last beam. The sensor’s seconds are taken as the autopilot’s (the same on a vehicle and in a simulation). Every ATTITUDE and GLOBAL_POSITION_INT reaches the worker with its arrival time and the autopilot’s time_boot_ms; the sample just before the points is projected to their time: attitude with the gyro rates (Euler kinematics), position with the velocity. Without this, a copter yawing at 90°/s with an attitude 50 ms old puts a return 80 m away 6 m off, and every slope the scan crosses grows spikes. The projection runs on the autopilot’s clock, measured from time_boot_ms against arrival: 1 on a vehicle, the speed-up in a SITL (shown on the status line), where 50 ms here are a second of rolling in the waves. The telemetry samples themselves are timed by the autopilot’s clock (time_boot_ms) mapped onto the GCS’s along the least delayed of them, not by their arrival: anything that holds the GCS’s main thread for a moment (a long frame, a garbage collection) delays and bunches the telemetry, never the points’ poses. A message whose points are newer than the newest telemetry waits for it, up to 1.5 s.
  4. Placing. Sensor frame → mount + lever arm → body → NED → ENU from an anchor (the first pose); world frames from home (absolute) or from the local zero (relative).
  5. Averaging. Each message gives each 30 cm cell it touches one sample — the mean of its points there, weighted by how many (1 point = 1/3 of a sample) — and a cell keeps a running mean of at most MEMORY samples. Cells live in tiles of 30 × 30, made only where data arrive; past MAX TILES the farthest from the vehicle are dropped.
  6. Adaptive mesh. 30 cm is the finest the mesh gets: each cell is drawn at the finest of 30 cm, 60 cm, 1.2, 2.4 or 4.8 m that has MIN SAMPLES, and the lines at that spacing. Holes up to FILL HOLES UP TO (1.2 m at 30 cm by default) are interpolated, edges are not extended, and nothing is averaged or joined across a height jump (a cliff, a wall).

The renderer keeps the heights in GPU textures (blocks of 8 × 8 tiles), builds the triangles in the vertex shader, draws the lines in the fragment shader (they fade where cells get smaller than a few pixels; tile edges every 9 m stay) and coarsens far blocks. Only the tiles that changed travel from the worker, at most four times a second. Points are not kept: the surface cannot be exported as a point cloud (the LiDAR page saves .ply for the Livox read directly).

7. Caves (SURFACES: 3D)

A height per cell holds one surface: right for terrain, wrong in a shaft, a cave or under an overhang, where floor, walls and ceiling share columns. In 3D mode the returns are fused into a volume of 30 cm voxels holding a truncated signed distance to the rock along each ray (positive in the water, negative behind the rock, averaged over MEMORY samples), and meshed where it changes sign (surface nets). Every wall comes out with its own orientation. The volume is kept in chunks of 16³ voxels; only the chunks that changed are meshed again and sent. A surface needs the sensor to move or sweep: two fans from one place have no area. 3D mode has no levels of detail: it is meant for the scale of a cave, not of a survey.

8. Absolute and relative navigation

  Absolute (GPS) Relative (no GPS)
Sensor-frame points placed with GLOBAL_POSITION_INT + ATTITUDE placed with LOCAL_POSITION_NED (DVL, USBL, visual odometry in the EKF) or the GCS dead reckoning
World-frame points (map, odom) from home (a sub: its surface) from the local zero
Switching mode, a vehicle connecting the surface starts again: its frame is gone

In relative mode the mesh is only as good as the local position: with a DVL or USBL it holds; dead-reckoning on a sub’s EKF velocity drifts with it. Coverage of planned areas is measured in absolute mode only (a relative frame has no place on the map).

9. Testing without a vehicle

These scripts run from a source checkout (git clone, npm install — see Getting started):

node scripts/test-ros-surface.js     # decoding, frames, mounts, projection, cells; rosbridge end to end
node scripts/test-ros-cave.js        # a ROV down the cave: mounting check and 3D mesh accuracy
node scripts/test-ros-sector.js      # the GCS's worker on a moving boat: a sector sonar with and without time_increment
node scripts/rosbridge-sim.js --scene terrain|seabed|cave|garda|garda-complex [--ros1] [--pose e,n,up,yaw]
node scripts/garda-map.js [--scene garda|garda-complex] [--area e0,n0,e1,n1] [--res m] [--tiles surface.json [--diff | --against earlier.json]] --out map.png

(On Node 20 the tests restart themselves with --experimental-websocket, which roslib needs.)

rosbridge-sim.js speaks the rosbridge protocol (JSON and CBOR, rosapi, throttling) and publishes /livox/lidar, /cloud_registered (map), /scan, /sonar/multibeam, /ping1d/range, /sonar/profiler (dual 360° fan), /sonar/imaging (an imaging sonar looking down: 256 beams over 90° across the track, 90 m range, a 10° vertical aperture, with aeration that grows with the hull’s motion, fish, dropouts and range noise) and /sonar/sector (below), ray-cast from SITL’s true pose (SIMSTATE / SIM_STATE on TCP 5762, also without GPS) against a known scene: hills with rocks, a 0.6 m slab and a ditch; a lake bed with a wreck and rocks; a cave of 3 m shafts and passages down to 30 m; garda, 5 km² of the southern basin of Lake Garda (2.5 × 2 km from 45.4960 N, 10.6490 E), 6 to 74 m deep. Other options: --port (9090), --mav (tcp:127.0.0.1:5762), --lidar-mount, --down-mount, --profiler-mount, --lever, --lidar-points, --sonar-aperture, --sonar-beams, --sonar-range, --sonar-rate, --sonar-clean (no disturbances).

/sonar/sector is a mechanical sector-scanning sonar, head down, sweeping across the track: one beam per ping, the head stepping --sector-step (1.8°) back and forth over --sector-aperture (120°), a ping every 2 × --sector-range (40 m) / 1 480 m/s + 12 ms — 15 pings a second, a sweep every 4.4 s. The bottom is where a quarter of the echo’s energy is back, from rays across the beam (--sector-beam 2° by --sector-fan 2°; 25° for a Ping360) weighted by its pattern, put on the beam’s axis; with aeration, fish, dropouts, 3 cm + 0.2 % of range noise and 1 200 range bins. Pings go out as LaserScans of --sector-batch (1 s) of the sweep with time_increment (--sector-untimed leaves it 0), the head stepping on the SITL’s clock — read from ATTITUDE.time_boot_ms — so a survey run at ×5 is sampled along the track as at ×1. Mount --sector-mount (0, −90, 0).

The garda scene is an approximation of the bed, not survey data: the slope from the western shallows (10 m) into the basin (74 m), a moraine ridge 14 m high with boulders on it, an old channel, a rock shoal coming up to 6 m, a slump on the slope into the basin (its scar and its lobe), glacial erratics on the plain, sand ripples in the shallows, pockmarks in the mud, natural relief at every scale from 8 to 420 m, and a 28 m wreck. On the plain in the south-west, 11–17 m deep, lie the objects — sharp-edged boxes and cylinders, ray-cast exactly, so a sonar sees their walls, their shadows and the widening its beam gives them:

# Object Depth Proud of the bed Position
1 Motorboat wreck, 9 m, with its wheelhouse 12.3 m 2.6 m 45.498744 N 10.652262 E
2 Car 14.6 m 1.3 m 45.498384 N 10.654437 E
3 20 ft container 13.8 m 2.4 m 45.500094 N 10.653286 E
4 Light aircraft (11 m wing span) 16.0 m 2.2 m 45.499734 N 10.655205 E
5 Upturned rowing boat 12.7 m 0.5 m 45.497934 N 10.652838 E
6 Artificial reef, nine 2 m cubes 14.8 m 1.8 m 45.498114 N 10.655461 E
7–10 Four mooring blocks, 20 m apart 13.9–15.4 m 0.8 m from 45.500991 N 10.653437 E
11 Oil drums, twelve upright and two lying 13.4 m 1.2 m 45.500724 N 10.651623 E
12 Pipeline Ø 0.8 m, 425 m long, partly in the sediment 11.7–17 m 0.5 m across the field, WSW–ENE

garda-complex is the same lake and the same objects with the ground around them made hard to survey: a rocky ridge 3–4 m high running east–west between the wreck and the container, its crest uneven and a gully cut through it; a scarp where the bed steps 2.6 m down to the east (the car now lies 17 m deep below it); a rock pinnacle rising 5.5 m; a field of boulders up to 1.8 m south of the wreck; sand waves 0.8 m high and 14 m apart in the north-east, which the pipeline spans; three pockmarks with raised rims; a channel through the ridge’s west end; and a 2–4 m rock texture on the rocky parts. Its slopes stay within what the emulator’s ray-casting handles exactly (checked against a 2 cm march in test-ros-surface.js).

garda-map.js draws the scene as a bathymetric map — depth colours, hill shading, isobaths, the objects numbered as above (the legend on its output), scale and north — or, with --tiles, a surveyed surface in the same frame (the ROS surface as the GCS holds it, getRosSurface() saved as JSON), or with --diff the survey’s difference from the scene.

Step by step, with the GCS’s own simulator:

  1. SETUP → TOOLS → SIMULATION: launch a vehicle (simulator) — a Copter for terrain, the Boat for seabed or garda, a ROV for cave.
  2. In a terminal: node scripts/rosbridge-sim.js --scene garda before the vehicle moves (the scene is anchored at home).
  3. ROS page: URL ws://127.0.0.1:9090, tick SURFACE FROM ROS, pick a topic — mounts as the emulator uses them: /livox/lidar 180, 0, 0; /ping1d/range, /scan, /sonar/multibeam and /sonar/imaging 0, −90, 0; /sonar/profiler 0, 0, 0.
  4. Arm and fly or drive: the surface should match the scene.

A survey of the garda scene: the Boat SITL, an area scan over the scene planned with sensor spacing (aperture 90°, range 90 m, design depth 30 m, side overlap 50 % → 30 m between lanes, 2 m/s), and /sonar/imaging with mount (0, −90, 0). The status line shows how much of the planned area the surface covers.

A survey of the objects with the sector sonar, as it was run for the measurements below:

  1. SIMULATION: Boat, SPEED MULTIPLIER 5; node scripts/rosbridge-sim.js --scene garda.
  2. ROS page: URL ws://127.0.0.1:9090, SENSOR Sector sonar, topic /sonar/sector, MAX RATE 20, MIN CELL 0.5 m, MAX TILES 4 096, RANGE WINDOW from 4 m, VERTICAL REFERENCE Water surface at home.
  3. FLIGHT PLAN: an Area scan over the objects — 380 × 400 m from 45.497755 N 10.651047 E to 45.501354 N 10.655909 E — lanes north–south, From mapping sensor (swath angle 120°, range 40 m, distance 14 m, side overlap 30 % → 34 m between lanes), 1.2 m/s, overshoot 10 m, then RTL: 12 lanes, 6.2 km, 1 h 26 min. Saved in the mission library, uploaded, armed, AUTO.
  4. At the end, the surface the GCS holds (getRosSurface(), saved as JSON) drawn by garda-map.js --tiles next to the scene: the numbers below.

Then a closer one, to see what overlapping passes do to a mesh already built: the same sonar over 220 × 270 m around the wreck, the car, the container and the pipeline (from 45.497800 N 10.651815 E to 45.500229 N 10.654629 E), the boat homed at its south-west corner, Double grid on: the north–south lanes, then east–west ones over the same cells (4.7 km, 1 h 05 min). The surface was saved after each grid and compared with garda-map.js --against:

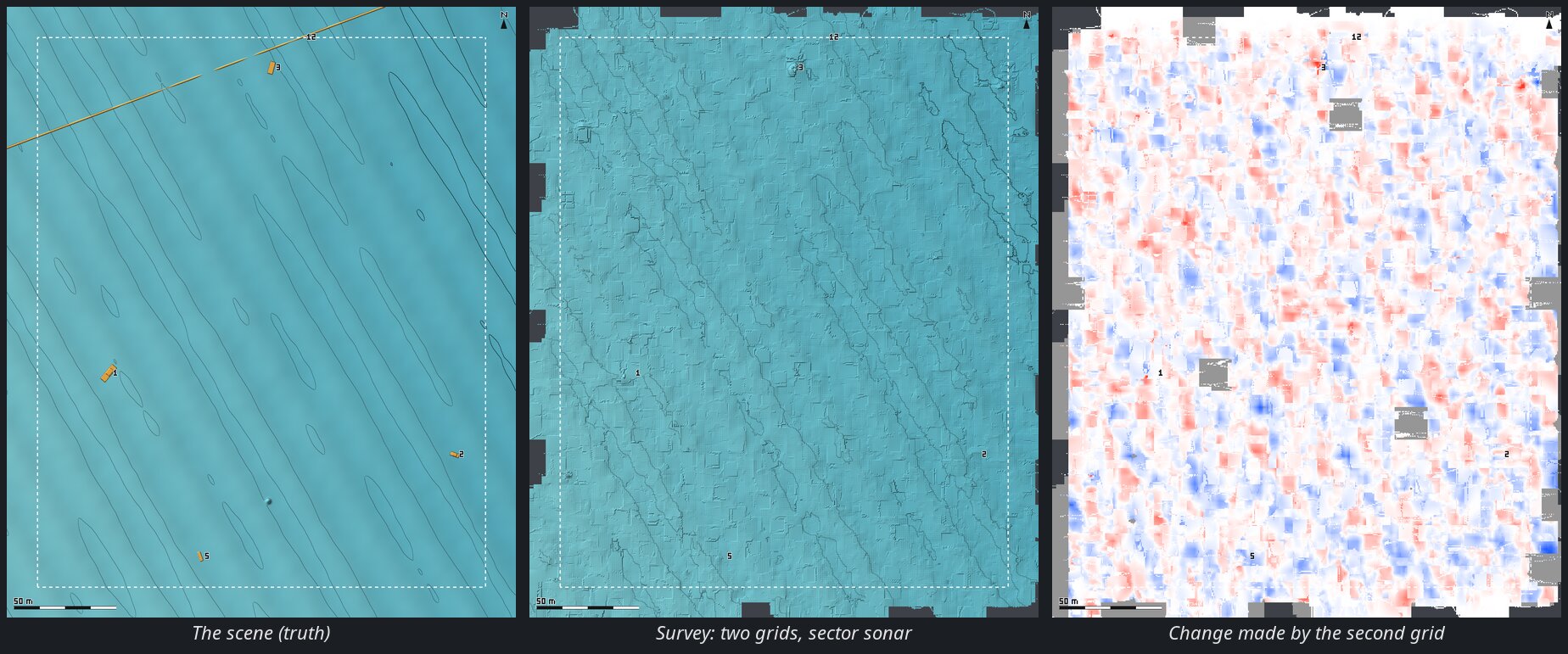

The scene, the survey after two grids, and what the second grid changed

The second grid does not disturb what the first built — cells measured in both moved by 2 cm and kept their error — and replaces interpolation with measurement where the first left gaps between its sweeps; two runs of it gave the same figures within a few millimetres.

Measured here:


Georeferencing chain (emulator → rosbridge → GCS) 0.0 mm from the scene, every sensor and frame
Aerial LiDAR, 30 cm cells, cell mean vs scene 1.6 cm RMS
A rock 1.2 m across, 0.8 m high kept at 0.74 m with 30 cm cells (2 m cells: 0.12 m)
Copter hovering, Livox, SITL 0.13 m RMS, 99 % within 0.24 m
Copter surveying at 8 m/s, without projection 1.8 m RMS, spikes to 15 m — the reason for §6.3
Cave, points with the true mount 0.5 cm p99 from the rock; a wrong mount puts 28–56 % of them over 30 cm off
Cave, 3D mesh median 2 cm from the rock, 98.6 % of triangles within 35 cm, the walls covered
Boat survey, imaging sonar, waves, SITL at ×21: first lanes, 1 m cells under the track (0–2 m): 10.6 m too shallow, 17 m RMS without the spike filter and with wall-clock projection; 0.14 m bias, 0.7 m RMS with both. Across the swath 0.5–0.6 m RMS; by depth 0.2 m RMS under 15 m, 0.8 m past 50 m, where the 10° vertical aperture spreads an echo over ±4 m along the track
Sector sonar, pencil beam, boat still (both ways of the sweep) 0.0 mm from the scene
Sector sonar, 2° beam, boat still over the container the bed within 2.6 cm (median) near nadir, 10 cm at 80 % with the oblique edges; the container’s top found
Sector sonar on a boat at 2 m/s, the GCS’s worker, beams timed 0.03 m RMS on the level bed, every cell over the wreck standing over 1 m; one pose per message instead: 0.13–0.15 m RMS, a third of them off the wreck
Boat EKF altitude 0.4 m high VERTICAL vehicle: the bed 0.42 m shallow; water surface: 0.02 m
Boat survey, sector sonar, SITL ×5, one grid (34 m lanes, 1.2 m/s, MIN CELL 0.5 m, fill 8 m) drawn over 98 % of the area; measured cells |error| median 6 cm, RMS 0.10 m; filled between the sweeps 10 cm, RMS 0.15 m; +6 cm bias
… and a second grid across it drawn over 100 %; cells measured in both changed by 2 cm (median) and kept their 6 cm error; cells filled after the first grid and measured in the second went from 9.7 to 6.8 cm (RMS 0.15 → 0.09 m); those still filled from 9.8 to 8.1 cm
… the objects on the mesh the 9 m wreck (2.6 m proud) stands 1.4 m, the container (2.4 m) 0.8 m, the car (1.3 m) 0.5 m: 0.5 m cells averaging a 2° footprint, with sweeps 5 m apart, round them down. ROUGH (blue ≤ 3 cm, red ≥ 8 cm off-plane here) colours 1.3 % of the cells red: the wreck, the container, the car and most of the pipeline; the upturned rowing boat (0.5 m) does not stand out
The first runs, before the time of each beam, the 13-beam spike filter and the water-surface height −0.17 m bias, aeration up to 13 m above the bed, holes along every lane where it fell
Rendering 60 FPS with the surface on, in the SITL runs

10. Limits

  • The pose is the telemetry’s, matched by arrival time (or a synced stamp): radio jitter blurs fast turns even with the projection.
  • A cell is a mean: vegetation and its ground, a fish and the bottom, average together. A minimum or a median per cell would be the next step.
  • 3D mode has no levels of detail: it is meant for the scale of a cave, not of a survey.
  • rosbridge sends whole messages; POINTS PER MESSAGE spares the GCS, not the link. For a narrow link, downsample on the vehicle (pcl_ros VoxelGrid) or lower MAX RATE.
  • The surface lives in memory only: CLEAR, unticking SURFACE FROM ROS, a new connection or a navigation-mode switch drop it; it is not saved.
